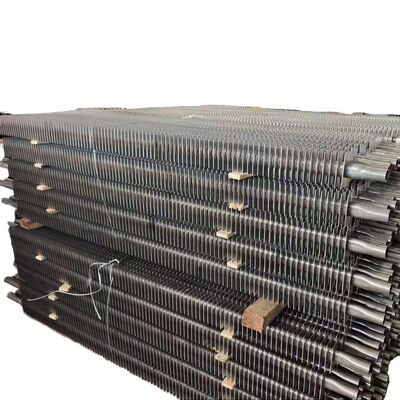

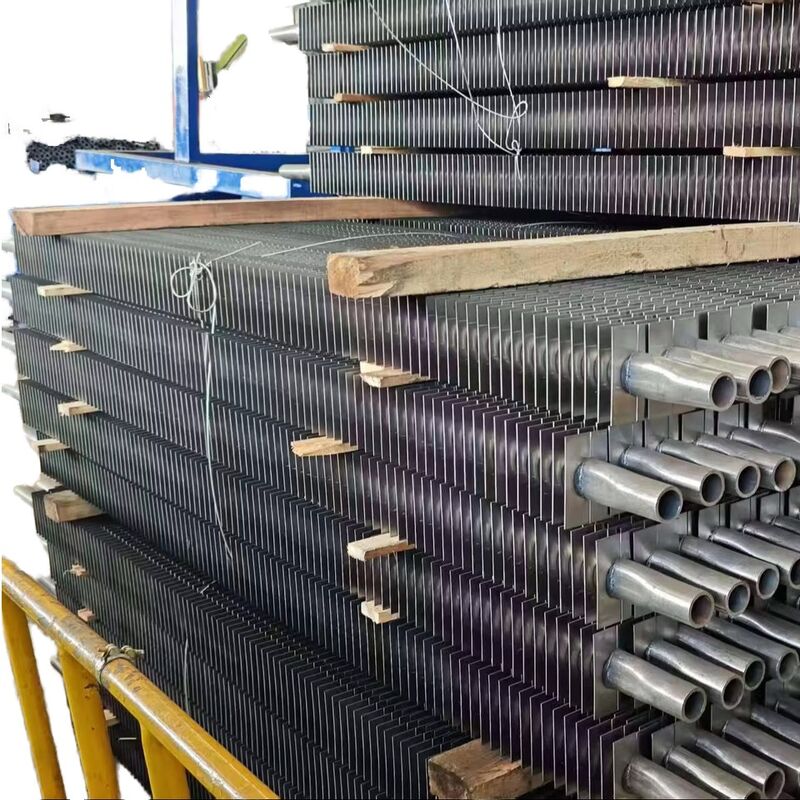

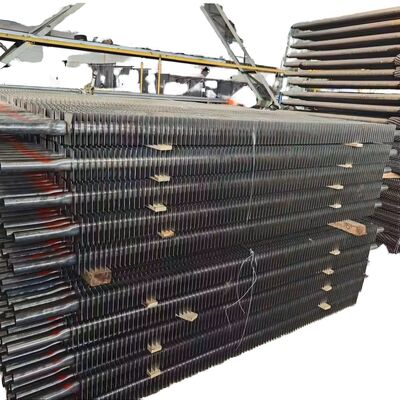

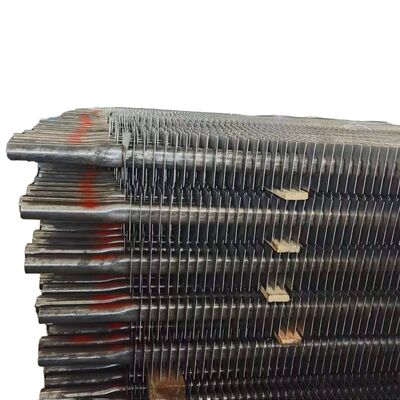

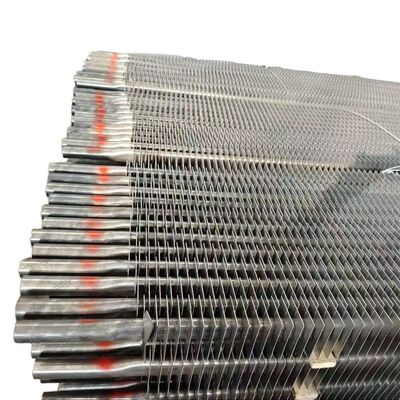

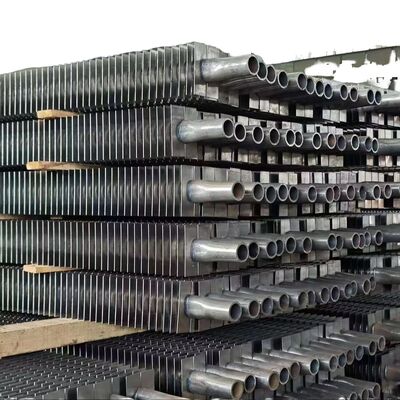

Name: Customized ASME Certified Stainless Steel H Fin Tube for Industrial Boilers with Low/High Pressure
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
Price: 51.00 USD
Availability: InStock

บ้าน ผลิตภัณฑ์Boiler Fin Tube

Customized ASME Certified Stainless Steel H Fin Tube for Industrial Boilers with Low/High Pressure

รายละเอียดสินค้า:

สถานที่กำเนิด:	มณฑลเจียงซูประเทศจีน
ชื่อแบรนด์:	HDB Boiler
ได้รับการรับรอง:	ISO9001,ASME,EN,CE

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	3
ราคา:	$2,100

ติดต่อ

รายละเอียดสินค้า

น้ำหนัก:	5,000 กก	ท่อฐาน OD:	25.4 ~ 1600 มม.
ความหนาของท่อฐาน:	2.5 ~40 มม	ความสูงครีบ:	0.5 ~20.0 มม
ความหนาของครีบ:	0.5 ~3.0 มม	สนามครีบ:	5 ~25.4 มม
วัสดุ:	สแตนเลส	ประเภทท่อฐาน:	รอยหรือไร้รอยต่อ
ความยาว:	0 <l <12000 มม.	ความดัน:	แรงดันต่ำ/สูง
การรักษาพื้นผิว:	ทาสี	น้ำหนักขั้นต่ำ:	10 ตัน
น้ำหนักสูงสุด:	1,000 ตัน	กระบวนการถลุง:	EF+LF+VD
Ut มาตรฐาน:	ASTM A388 หรือ EN10228
เน้น:	ASME Certified H Fin Tube , Stainless Steel Boiler Fin Tube , Low/High Pressure Finned Tube

Customized ASME Certified Stainless Steel H Fin Tubes

ASME certified stainless steel H fin tubes designed for industrial boilers operating at low and high pressures. Includes 1-year warranty.

Product Specifications

Parameter	Range	Material Options
Base Tube O.D. (mm)	25.4 - 1600mm	Carbon Steel, Alloy Steel, Stainless Steel
Base Tube Thickness (mm)	2.5 - 40mm
Fin Height (mm)	0.5 - 20.0mm
Fin Thickness (mm)	0.5 - 3.0mm
Fin Pitch (mm)	5 - 25.4mm
Length	0 < L < 12000mm

Product Details

Product Type	H-fin Tube
Base Pipe	Welded or Seamless
Material Options	Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys
Applications	H economizer, H evaporator, H superheater, H air heater and related systems

H-Finned Tube Economizer Technology

Boiler economizers are high-efficiency heat exchange devices with finned tubes that heat liquids up to, but not exceeding, their boiling points. We manufacture three types of boiler economizers:

Bare Tube Economizer

Standard heat exchange design

H Finned Tube Economizer

High-efficiency design with H-finned tubes

Spiral Finned Economizer

Advanced design to overcome abrasion and extend service life

Performance Advantages

Enlarges heat exchange area compared to bare tube designs
Reduces the number of tubes required
Increases flue gas flow area to reduce flow speed and abrasion
Double H finned tubes provide high rigidity for long tube rows

Economizer Function

The economizer functions to "economize" or reduce cooling costs by enabling system operation without continuous compressor use, resulting in significant energy savings.

Boiler Economizer Specifications

Description	Boiler economizer
Material	Alloy steel, Carbon steel, SA210C, SA213T22, etc.
Material Standard	ASTM, EN or ISO
Dimension	Customized
Weight Range	10 ton (Min) - 1000 ton (Max)
Smelting Process	EF+LF+VD
Manufacturing Process	Material→Ingot→Hot/Cold-Rolling→Heat treatment→Inspection→Rough machining→UT→2nd Heat treatment→Finishing machining→Inspection
UT Standard	ASTM A388 or EN10228

Manufacturer Profile

Zhangjiagang Hua Dong Boiler Co., Ltd., founded in 1985, specializes in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers and related heating surface components. We provide integrated services from design and manufacturing to installation and maintenance.

Quality Assurance

Impact test and Strength calculation reports with applied materials information
100% NDT (non-destructive inspection) of steel plate, tube and electrode
X-ray, γ-ray and liquid penetrant test inspection of welding seams
Hydraulic test reports to ensure standard working pressure and safety

Complete quality assurance and control system certified according to International Quality Standards. All processes and products are 100% controlled and manufactured in compliance with contract requirements, national regulations, and standards.

Certifications

Verified Certificates: ISO 9001:2015; CE certificate; EN ISO 3834-2; ASME certificate with "S", "U" and "NB" stamps

Frequently Asked Questions

Q: How long is the warranty period?

We provide 18 months warranty for all spare parts (excluding fragile parts).

Q: How can we guarantee quality?

All machines comply with ISO quality and CE system requirements
Each procedure crafted by professional skilled labor with dedicated QC
Complete product information available in efficient management system

Q: What products do you offer?

CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall, Boiler manifold headers and other pressure spare parts.

Q: What services do you provide?

Before Sales: Product information, market research, product customization, processing, consultation

After Sales: Technical training, warranty replacements, maintenance spare parts, regular customer follow-ups, prompt response to inquiries

Q: Are you a factory or trading company?

We are a factory located 130km (2 hours by car) from Shanghai Airport. We offer pickup service at Shanghai for customer visits.

Business Information

Delivery Terms	FOB, CFR, CIF, EXW, FCA
Payment Currency	USD, CNY
Payment Methods	T/T, L/C, MoneyGram, Western Union, Cash
Languages	English, Chinese
